HSP-5 Wet Mix Gunite Shotcrete Machine

Introduction of

HSP-5 Wet Mix Gunite Shotcrete Machine

HSP-5 Wet Mix Gunite Shotcrete Machine are widely be used for Construction Engineering, Mining, Tunnel, Culvert, Hydroelectric Project, Underground Engineering Shotcrete Machine for Construction HSP-series wet shotcrete machine is an advanced and high efficient concrete spraying machine, has been designed especially for spraying of concrete . It has the advantages of low dust , low rebound , high-strength concrete , simple operation , convenient for maintaining , prolong operation life etc. The machine , combined with dosing unite , is suitable for manual spraying or by means of a robotic arm .

MAIN PARAMETER OF

HSP-5 Wet Mix Gunite Shotcrete Machine

Model	HSP-5
Output	5m3/h
Max transport distance	Horizontal 30m
	Vertical: 20m
Max aggregate size	15mm
Working pressure	0.3-0.6Mpa
Air consumption	10-15m3/min
Turn daughter diameter	438mm
Voltage class	380
measurement	2000*900*1180mm
Weight	800kg

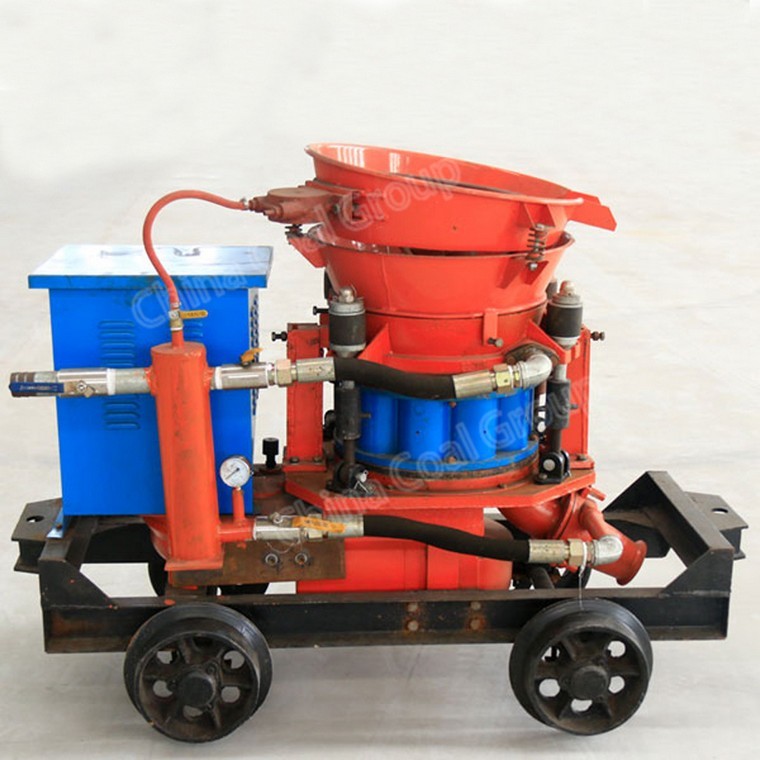

PHOTOS OF

HSP-5 Wet Mix Gunite Shotcrete Machine

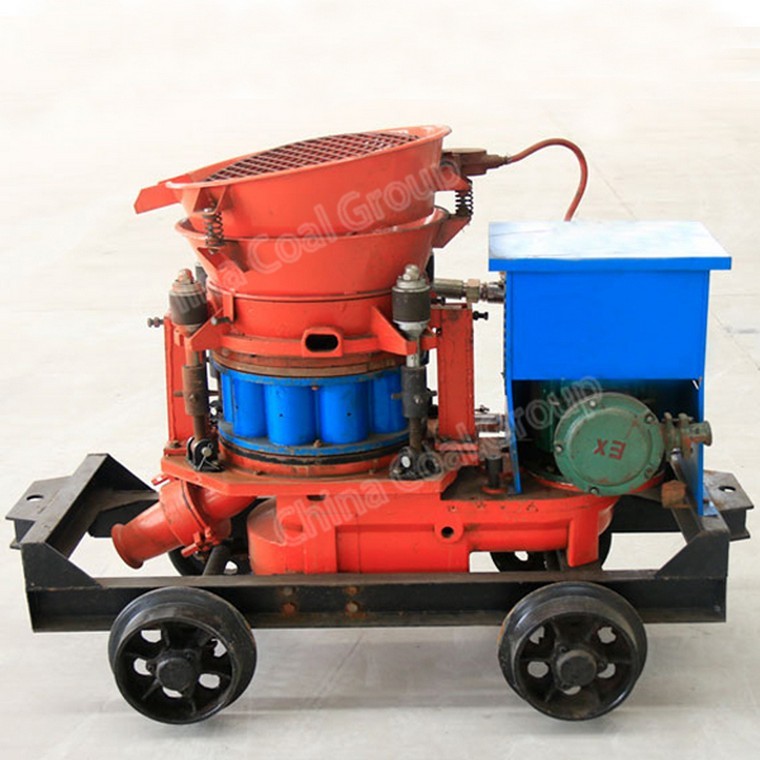

PHOTOS OF

HSP-5 Wet Mix Gunite Shotcrete Machine

•
